TCP sequence and ACK numbers with segment loss

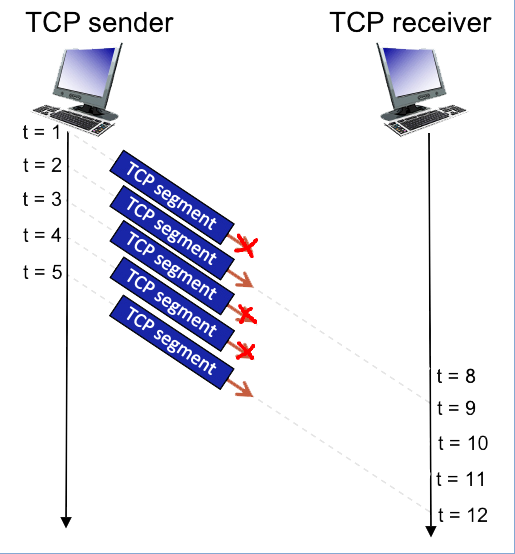

Consider the figure below in which a TCP sender and receiver communicate over a connection in which the sender->receiver segments may be lost. The TCP sender sends an initial window of 5 segments. Suppose the initial value of the sender->receiver sequence number is 264 and the first 5 segments each contain 352 bytes. The delay between the sender and receiver is 7 time units, and so the first segment arrives at the receiver at t=8. As shown in the figure below, 3 of the 5 segment(s) are lost between the segment and receiver.
Question List
1. Give the sequence numbers associated with each of the 5 segments sent by the sender. Format your answer as: a,b,c,...
2. Give the ACK numbers the receiver sends in response to each of the segments. If a segment never arrives use 'x' to denote it, and format your answer as: a,b,c,...
Solution
1. The sender's sequence numbers are: 264,616,968,1320,1672
2. The receiver's ACKs are: 616,x,x,x,616
That's incorrect
That's correct
The answer was: 264,616,968,1320,1672
The answer was: 616,x,x,x,616
